100 Piece (MOQ)
| Business Type | Manufacturer, Supplier |
| Shape | Round |
| Color | Blue |
| Usage | Chemicals and its Vapors, Petrochemicals and its Vapors |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details
Size
1
Country of Origin
India
Pressure
Up to 35kg/cm2(balanced)
Temp
-40° to 200° C
Appication
Chemicals and Its Vapors, Petrochemicals and Its Vapors
Details :

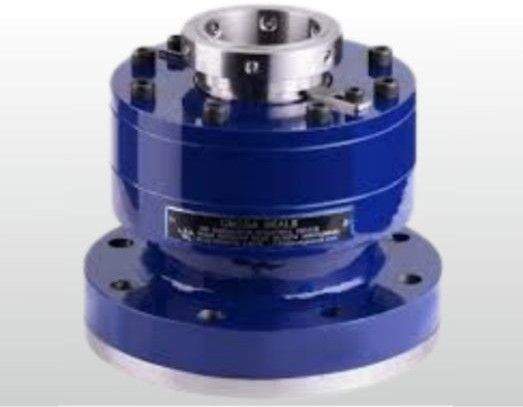

- These Cartridge Seaf units are designed for Mixer,
- Agitators and Glass Lines Recotors. The Heavy duty
- construction of the 50 seriesprovides long seal life and
- excellent repairability. The design incorporates bearing
- located very close to seal. The design specifically is
- engineered to accommodate the run-out conditions, up to
- 0.5mm. Large clearance between ration shaft/ sleeve and
- mating ring permits higher deflection of the shaft.
- For Higher temperature application, the seal asembly has
- got jacketed chamber to circulate chilled water to bring
- down the temperature. Also normally chilled/ Plain water is
- passed through the cooling coll of Thermosyphon to bring
- down the temperature of compatible barrier fluid circulated
- in seal housing to maintain the continuous cooling. Bottom
- portion of seal housing is also designed with heat trapping
- jacketed cooling to reduced the temperature around the
- bottom seal face.
MOC. Ss316, Ss3.4, ALLOY-20, Monal

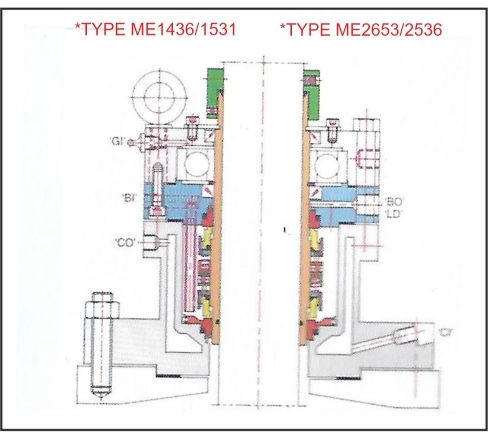

Graph
